Securing Fuse Box

  1. Engage the fuse box on the support and secure with the fastening nut -1-  . Ensure that the electric lines are not trapped or installed live. → Tightening torque: 9.7 Nm (7 ft. lb.)

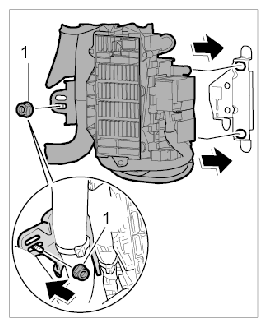

    Fig 1: Securing Fuse Box Fastening Nut
    G09831576Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clip in electric plug connection at the fuse box.

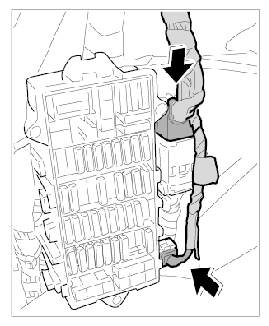

    Fig 2: Clipping In Electric Connector
    G09831577Courtesy of PORSCHE CARS NORTH AMERICA, INC.
