Removing Relay Carrier 1 From The Retaining Frame

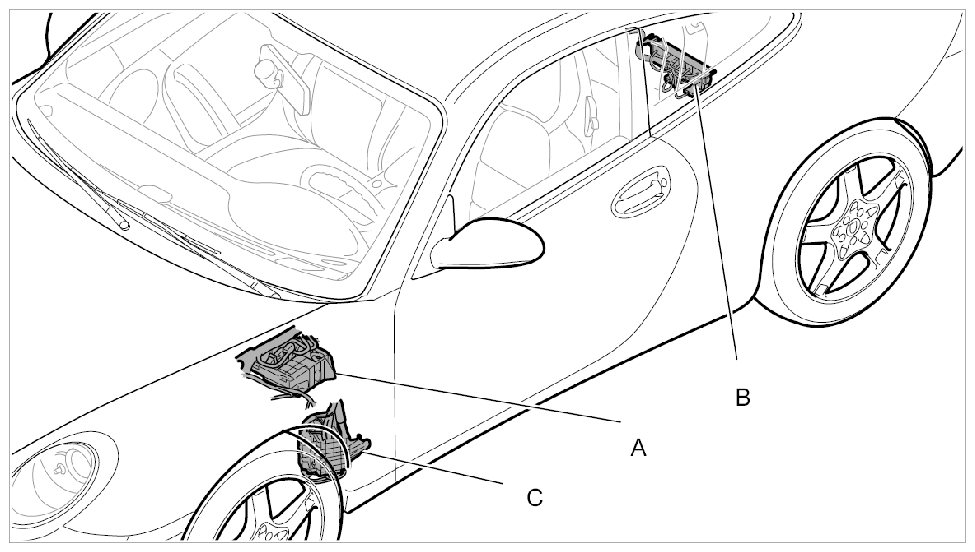

Fig 1: Identifying Relay Carrier Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A  - Relay carrier 1

1. -A-  Pull apart both retaining lugs on relay carrier support and press the relay carrier upward.

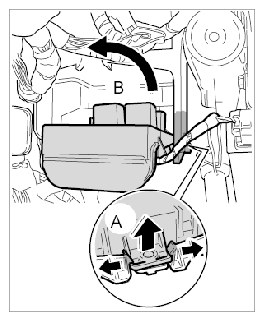

   Fig 2: Removing Relay Carrier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. -B-  Press relay carrier upward approx. 45° on the right side.
3. -C-  Pull out the support lugs of the relay carrier from the support and -D-  pull out the relay carrier downward.

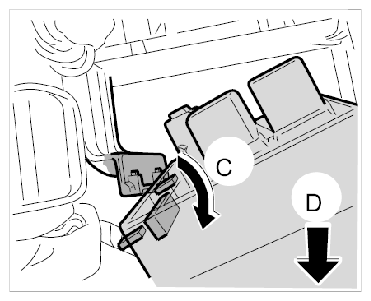

   Fig 3: Pulling Out Relay Carrier Of Retaining Frame

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
