Installing Relay Carrier 1 In The Retaining Frame

  1. Slide in the relay carrier from below at approx. 45° slant into the support.

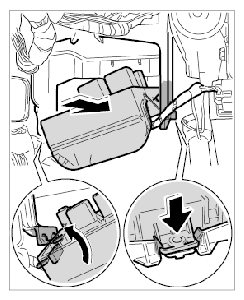

    Fig 1: Pushing Relay Carrier Into Retaining Frame
    G09831572Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Secure the support lugs from the relay carrier into the support and engage the relay carrier in the support.
