Removing Wiring Harness For Number Plate Light

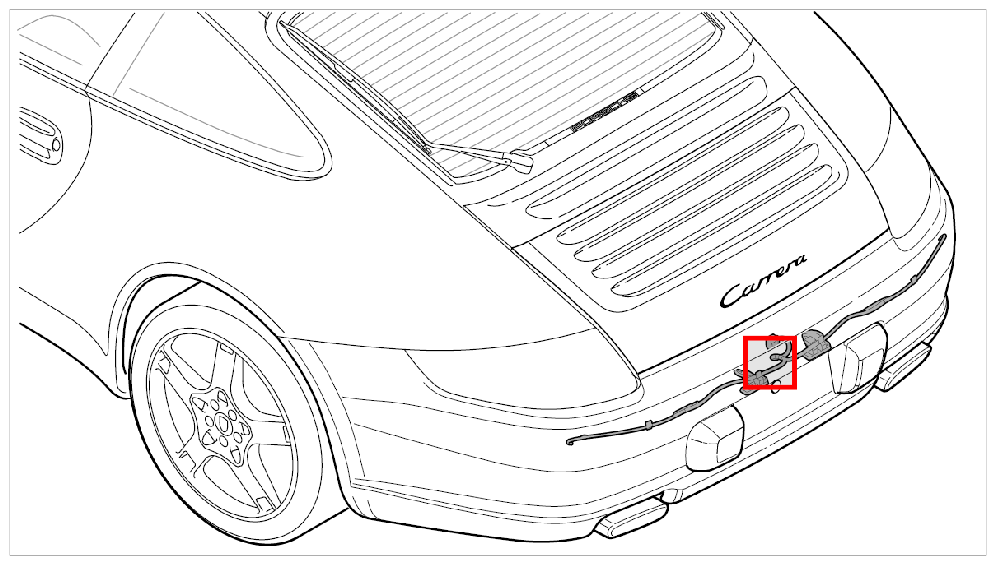

Fig 1: Overview Of Wiring Harness For Number Plate Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove wiring harness for number plate light from the four line holders.
   Fig 2: Removing Wiring Harness For Number Plate Light From Four Line Holders

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release the connectors for the two number plate lights -arrow a-  and pull them off.
   Fig 3: Pulling Off Number Plate Light Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release the connectors for the four ParkAssist sensors -arrow a-  and pull them off.
   Fig 4: Pulling Off Connectors For Park Assist Sensors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
