Removing Wire Harness For Rear Spoiler

Open the rear lid.
Release the locking lug -1- for the electric plug connection -arrow A- and disconnect it -arrow B- .

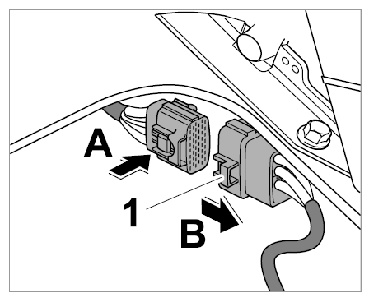

Fig 1: Disconnecting Wire Harness At Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open the wiring duct -arrow A- and take out the line -arrow B- .

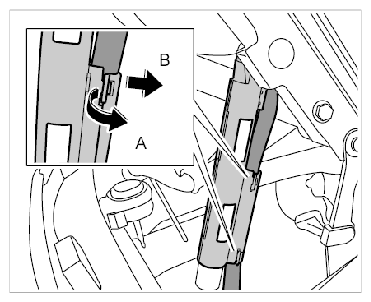

Fig 2: Loosening Line On Hinge For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unplug electric connector for engine-compartment scavenging blower

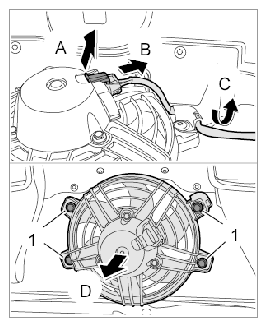

Fig 3: Removing Electric Line At Engine-Compartment Scavenging Blower
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Release the connector -arrow A- and pull it off -arrow B- .
2. 4.2. Take the line out of the holder -arrow C- .
Unclip line from rear lid at two places.
Pull wire harness out through the openings at the rear lid.
