Installing Wire Harness For Rear Spoiler

Thread wire harness through the openings at the rear lid and press the rubber sleeves cleanly onto the rear spoiler.
Clip in wire harness in rear lid at two places.

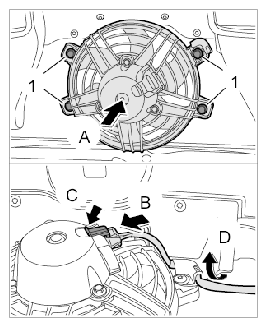

Fig 1: Installing Electric Line At Engine-Compartment Scavenging Blower
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric connector for the engine-compartment scavenging blower -arrow B- until the locking lug -C- engages securely.
Insert the line into the holder -arrow D- .

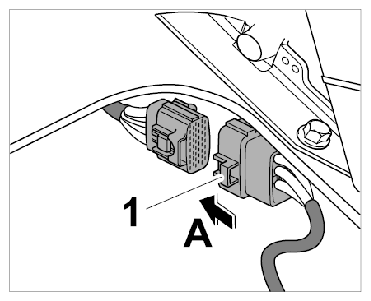

Connect the electric plug connection -arrow A- until the locking lug -1- engages securely.

Fig 2: Locking Wire Harness At Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

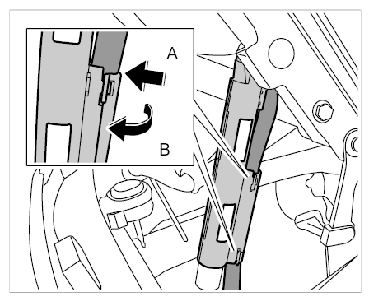

Insert the wire harness into the wiring duct -arrow A- .

Fig 3: Securing Line On Hinge For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the wiring duct -arrow B- until the locking lugs engage securely.
