Exposing Rear Wire Harness
- Remove left footwell trim panel.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

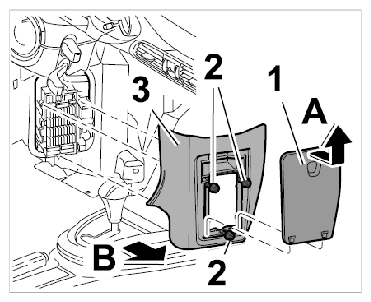

- 1.1. Remove fuse carrier cover -1-
(-arrow A-
).
- 1.2. Unscrew the three fastening screws -2-
and take off the footwell trim panel -3-
(-arrow B-
).
- Remove right footwell trim panel.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

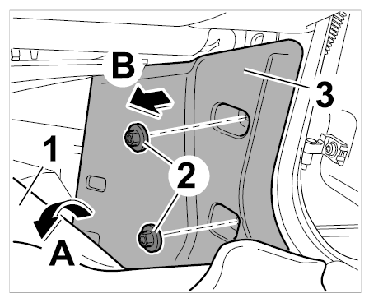

- 2.1. Partly loosen floor covering -1-
at the bottom in the area of the A-pillar -arrow A-
.
- 2.2. Unscrew both plastic nuts -2-
and take off the footwell trim panel -3-
(-arrow B-
).
- Loosen seat belt mount at left and right.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

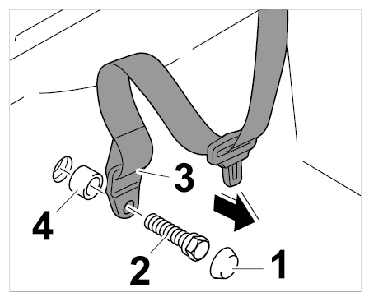

- 3.1. Press off cap -1-
with a screwdriver and unscrew the fastening screw -2-
. Remove seat belt with fitting -3-
and spacer sleeve -4-
.
- Disengage floor covering at the support and lay it in the vehicle interior.
- Remove left and right support.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

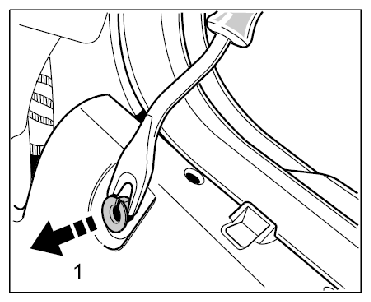

- 5.1. Unlock locating peg -1-
of the support using the commercially available removal tool Disassembly Tool, Universal Nr. 21
.

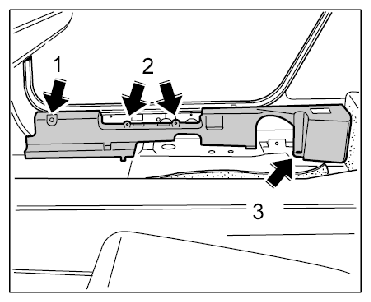

- 5.2. Unscrew fastening screws -2-
and nuts -3-
and carefully pull the support up and out of the retaining points.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove mounting saddle for rear-seat backrest.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

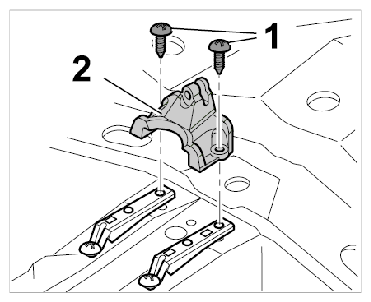

- 6.1. Unscrew the two fastening screws -1-
and remove mounting saddle for rear-seat backrest -2-
.
- Remove insulating elements in the area of the rear wire harness.
