Completing The Vehicle

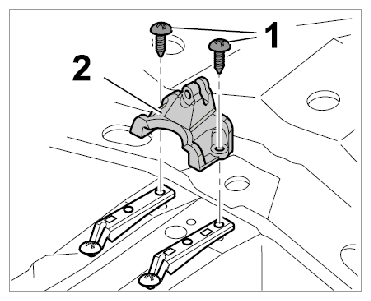

Fig 1: Installing Mounting Saddle For Rear-Seat Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Position mounting saddle for rear-seat backrest -2-  and secure with the two fastening screws -1-  . → Tightening torque: 10 Nm (7.5 ft. lb.)

Fig 2: Engaging Support

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 3.1. Position the support and engage in lower side member.
2. 3.2. Push in the locating peg -1-  of the support and check that it is seated correctly.
   Fig 3: Securing Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Tighten the fastening nuts -3-  and fastening screws -2-  . → Tightening torque: 7.2 Nm (5.5 ft. lb.)

Information

Ensure that belt strap can run properly!

Fig 4: Installing Seat Belt

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 5.1. Screw in fastening screw -2-  , seat belt and fitting -3-  and spacer sleeve -4-  on inner lower side member. → Tightening torque: 50 Nm (37 ft. lb.)
2. 5.2. Press in cap -1-  .

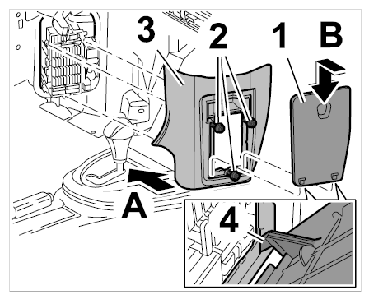

Fig 5: Installing Lateral Footwell Trim On Driver Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 6.1. Insert footwell trim panel -3-  (-arrow A-  ) and screw in the three fastening screws -2-  . → Tightening torque: 3 Nm (2 ft. lb.)
2. 6.2. Insert the fuse carrier cover -1-  with both clips -4-  into the lateral footwell trim panel -2-  and clip in -arrow B-  .

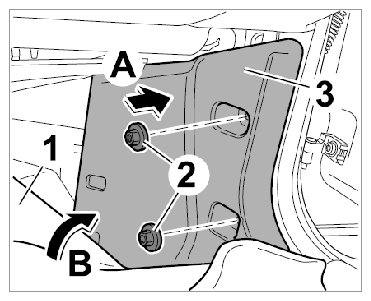

Fig 6: Installing Lateral Footwell Trim On Passenger Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 7.1. Position footwell trim panel -3-  (-arrow A-  ) and screw down with both plastic nuts -2-  .
2. 7.2. Secure floor covering -1-  at the bottom in the area of the A-pillar -arrow B-  . Use double-sided adhesive tape or suitable adhesive  .
