Removing Front Wire Harness

The front wire harness is made up of two separate parts (left and right).

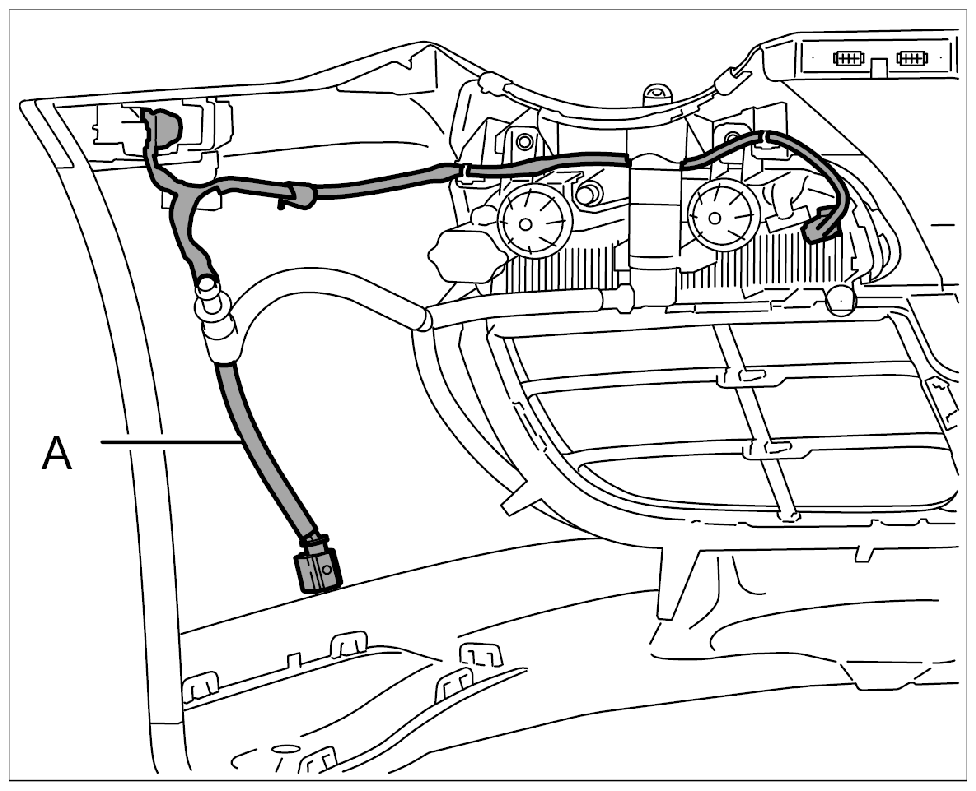

Fig 1: Identifying Front Left Wire Harness Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front left wire harness -A-

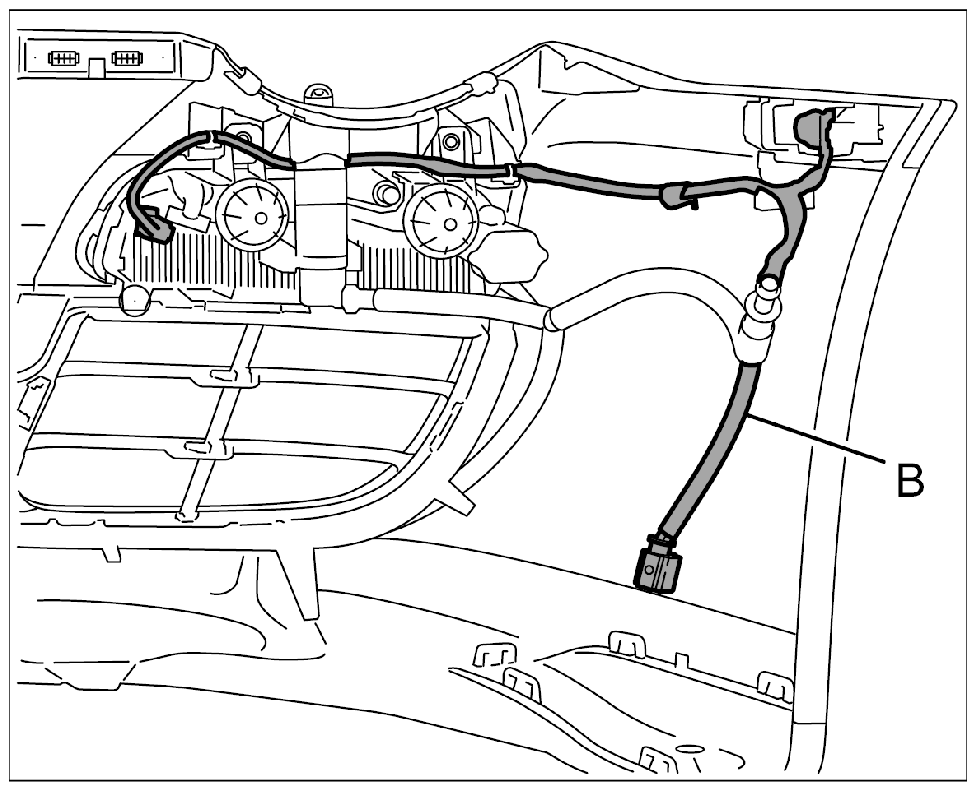

Fig 2: Identifying Front Right Wire Harness Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front right wire harness -B-

The procedure for removing the front left wire harness is described here.

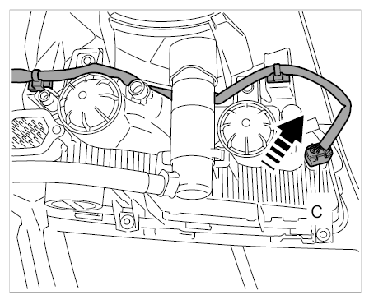

1. Release and unplug electric connector on the auxiliary headlight -C-  .
   Fig 3: Unplugging Electric Connector On Auxiliary Headlight

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release and unplug electric connector on the side direction indicator -D-  .
   Fig 4: Unplugging Electric Connector On Direction Indicator

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

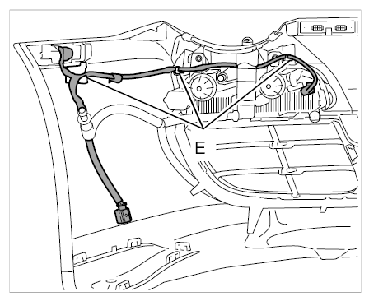

3. Disengage wire harness at the auxiliary headlight and at the front apron -E-  .
   Fig 5: Disengaging Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove wire harness.
