Installing Front Wire Harness

The procedure for installing the front left wire harness is described here.

1. Position and engage wire harness in the front apron -E-  .

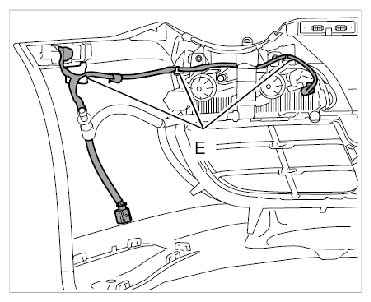

   Fig 1: Engaging Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Plug in electric connector on the side direction indicator -C-  until the connector engages securely.

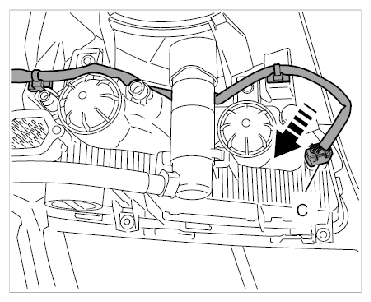

   Fig 2: Plugging In Electric Connector On Direction Indicator

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Plug in electric connector on the auxiliary headlight -D-  until the connector engages securely and engage the wire harness on the auxiliary headlight.
   Fig 3: Plugging In Electric Connector On Auxiliary Headlight

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
