Removing Vehicle Electrical System Control Unit

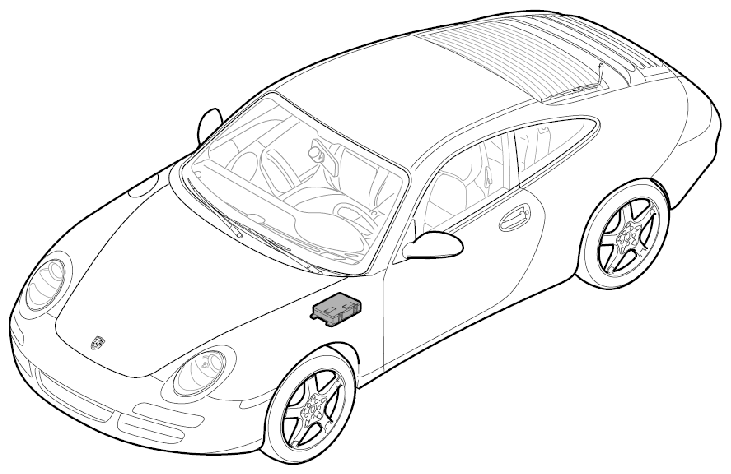

Fig 1: Identifying Electrical System Control Unit Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Remove the ignition key and switch off load before disconnecting or removing load.

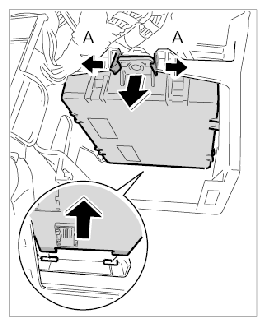

1. Pull apart the locking tabs -A-  for the vehicle electrical system control unit, pull the control unit forward and down with connectors still attached, then pull it out of its holder at the rear.
   Fig 2: Pulling Out Holder At Rear Electrical System Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

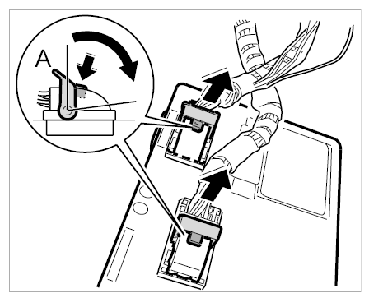

2. Release both electrical connectors -A-  and unplug them.
   Fig 3: Removing Electrical Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Take out the control unit.
