Installing Vehicle Electrical System Control Unit

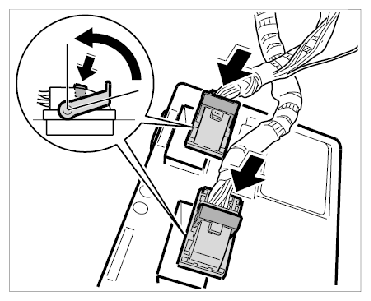

Press electrical plugs into control unit and lock them -arrow- so they are felt to engage.

Fig 1: Inserting Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

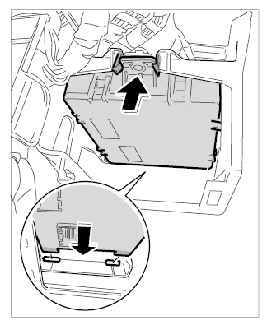

Push vehicle electrical system control unit upwards into the holder. It must engage properly. Make sure the electrical leads are not pinched.

Fig 2: Pushing Electrical System Wiring Into Retaining Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
