Removing spray nozzle head

  1. Insert an angled scriber, for example, into the opening in the nozzle head and pull the spray nozzle up and out.

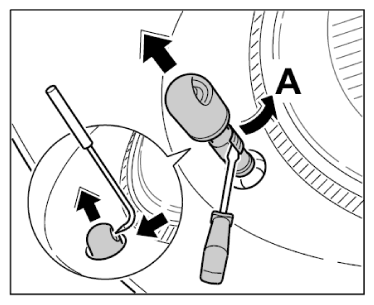

    Fig 1: Pulling Out Nozzle Head
    G09827581Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Hold the nozzle head at the top and disengage the catch on the spray nozzle with a small screwdriver -A-  . The nozzle head is released from the spray nozzle and the spray nozzle moves back into place.
