Installing spray nozzle head

  1. Insert the nozzle head into the opening on the spray nozzle and slide it in as far as it will go. The nozzle head clicks into place in the spray nozzle.

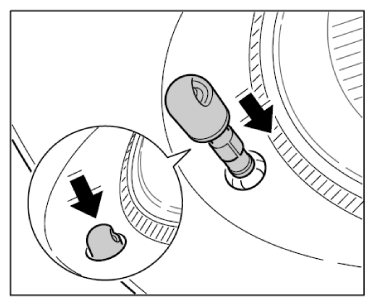

    Fig 1: Pressing Nozzle Head Into Place
    G09827582Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Check function of spray nozzle and spray range.
