Installing spray nozzle for windscreen washer system

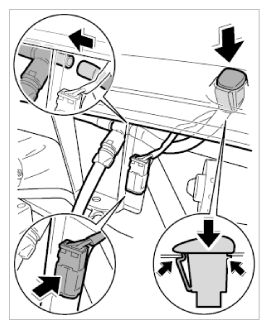

Push spray nozzle, together with hose and electric connector, through cowl panel cover, and engage.

Fig 1: Installing Spray Nozzle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push water hose onto T-piece and ensure that it is securely fixed.
Push electric connector onto mount on cowl panel cover.

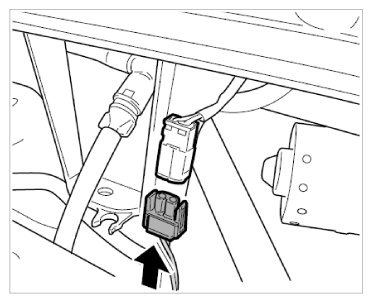

Push on electric connector for spray nozzle until it clicks into place.

Fig 2: Plugging In Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
