Removing wiper motor

  1. Unscrew the fastening nut -1-  for the wiper link drive and remove the drive.

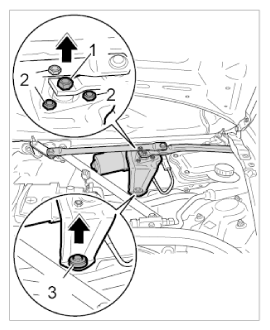

    Fig 1: Removing Wiper Link Drive
    G09827531Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew the three fastening screws -2-  for the wiper motor and the fastening screw -3-  for the wiper link.
  3. Carefully raise the wiper link and remove the wiper motor downwards.

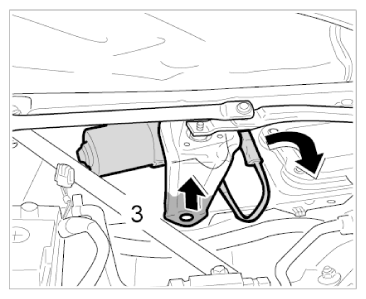

    Fig 2: Removing Wiper Motor In Downward Direction
    G09827532Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unlock the electric connector a and pull it out of the wiper motor.
