Installing wiper motor

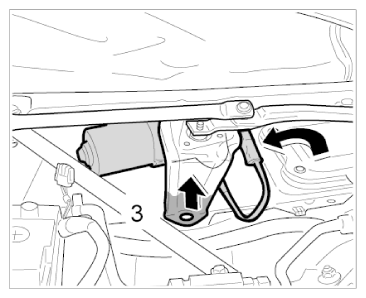

- Carefully raise the wiper link and position the wiper motor from below.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Push electrical connector onto wiper motor until it is felt to engage.

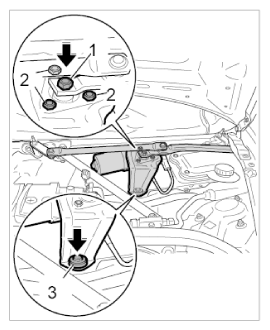

- Secure the wiper motor with the three fastening screws -2-
to the wiper link. → Tightening torque: 6 ftlb.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Screw down the fastening screw -3-
for the wiper link. → Tightening torque: 7.5 ftlb.
- Connect battery, ignition on, and actuate wiper motor.
- Allow wiper motor to run in parking position. Place the link on the drive on the wiper motor. Place fastening nuts -1-

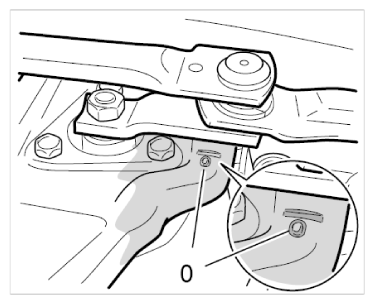

. The installation position of the link is identified by a 0 marking (parking position) on the console.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- If the position -0-
matches, then screw down the fastening nut -1-
. → Tightening torque: 13 ftlb.
- Connect the battery.
- Switch on the wiper motor and check the wiper position.
