Removing Cover For Front Middle Backrest

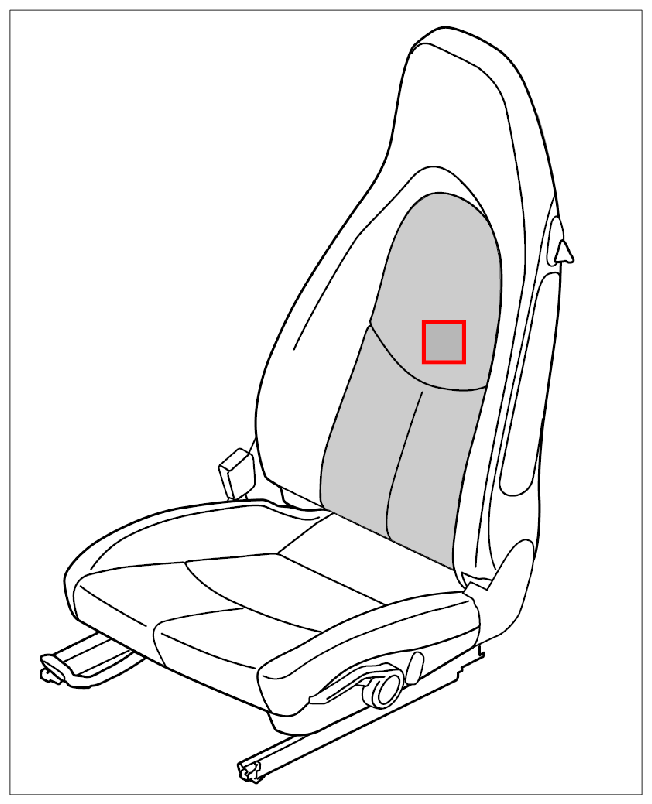

Fig 1: Identifying Cover For Front Middle Backrest Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

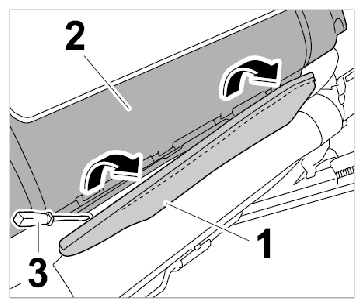

Press cover for backrest -1- carefully out of the backrest shell -2- using a screwdriver -3- .

Fig 2: Loosening Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

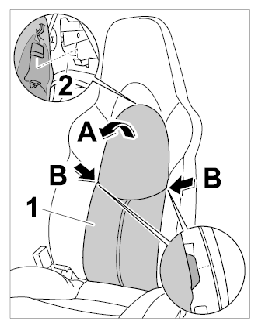

Insert your hand into the top of the backrest cover -1- and disengage it by pulling it up out of the backrest frame -2- (-arrow A- ). Then press cover for backrest together slightly in the middle -arrows B- and pull forwards and out.

Fig 3: Removing Cover For Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only for vehicles with heated seats.

Information

Only for vehicles with heated seats.

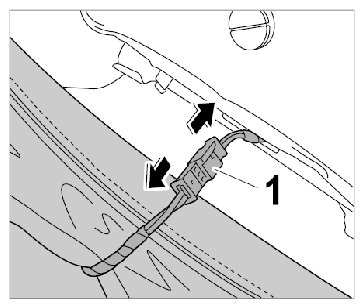

Disconnect electric plug connection for backrest seat heating -1- .

Fig 4: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
