Installing Backrest Pocket: Notes

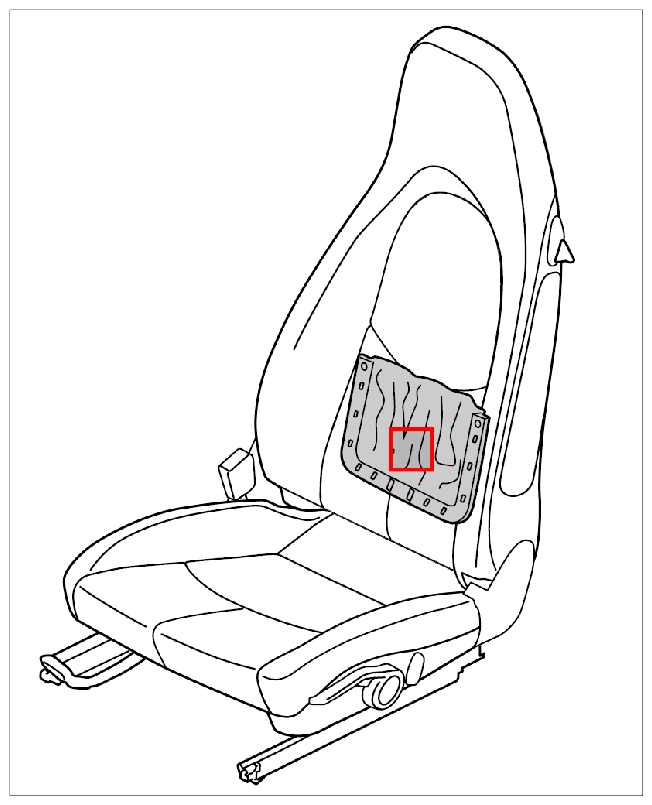

Fig 1: Identifying Backrest Pocket Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engage backrest pocket -3- in the backrest shell and press in at the top.
Screw in fastening screws -1- with washers -2- on the inside onto the backrest pocket.

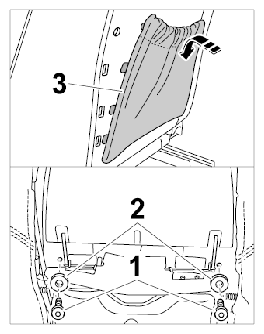

Fig 2: Installing Backrest Pocket

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
