Removing Cover For Front Backrest: Notes

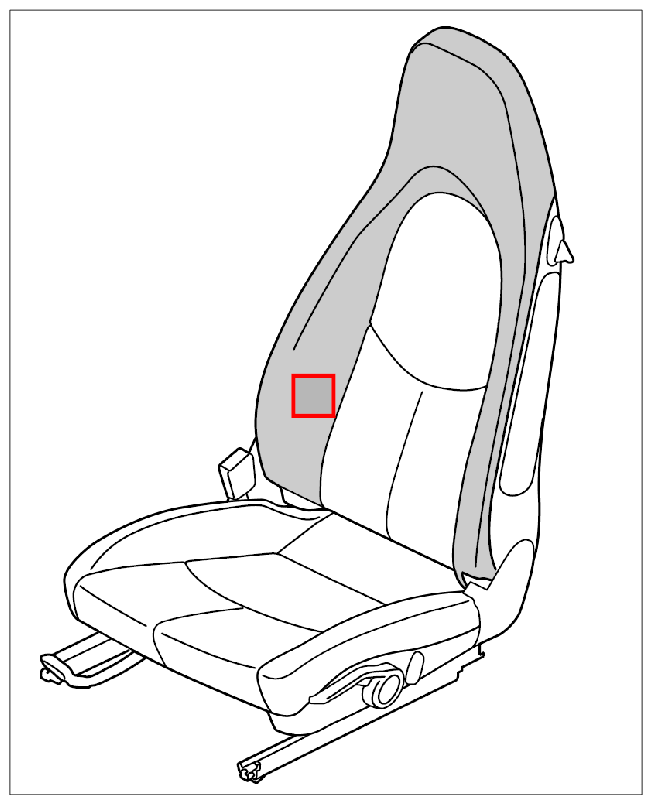

Fig 1: Identifying Cover For Front Backrest Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

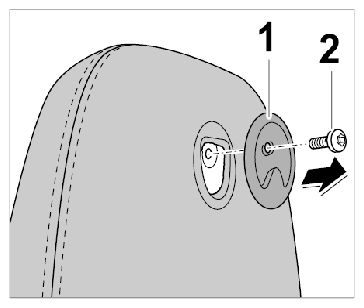

1. Unscrew fastening screw -2-  and remove coat hook -1-  .
   Fig 2: Removing Coat Hook

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

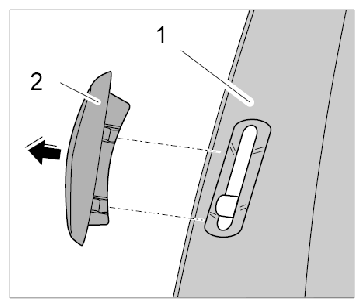

2. Insert a plastic wedge between the backrest cover -1-  and the collar -2-  and unclip collar.
   Fig 3: Removing Collar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

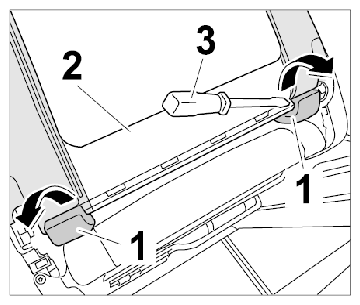

3. Press out cover for backrest -1-  from the cushion carrier -2-  lower left and right using a screwdriver -3-  .
   Fig 4: Disengaging Cover For Backrest

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Press out cover piping -1-  right and left from backrest frame -2-  .
   Fig 5: Loosening Cover Piping

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove side airbag. → REMOVING SIDE AIRBAG

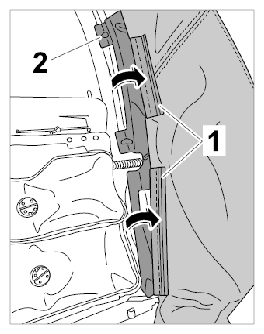

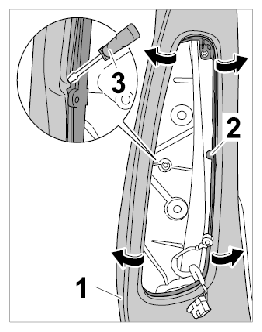

6. Slightly loosen connection of backrest cover -1-  from frame for side airbag -2-  with a screwdriver -3-  and pull out all around by hand.
   Fig 6: Loosening Connection At Frame For Side Airbag

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

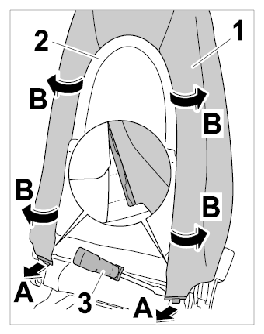

7. Press out cover for backrest -1-  from the cushion carrier -2-  lower left and right using a screwdriver -3- -Arrows A-  .
8. Pull out cover for backrest -1-  all around by hand from the rear of the cushion carrier -2- -Arrows B-  .
Fig 7: Loosening Cover For Rear Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

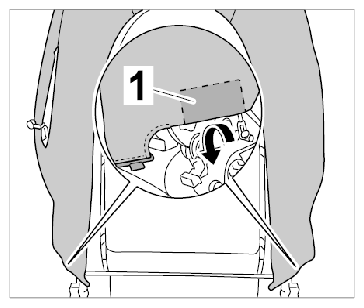

9. Fold cover piping -1-  at the sides right and left in direction of arrow.
   Fig 8: Folding Cover Piping

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

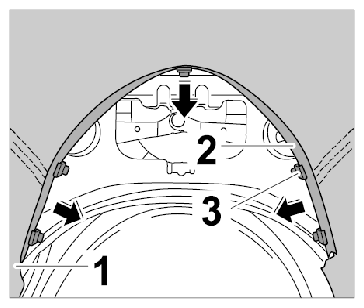

10. Press plastic strip -2-  on cover for backrest -1-  out of the fixing clips -3-  .
    Fig 9: Installing Cover For Backrest

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

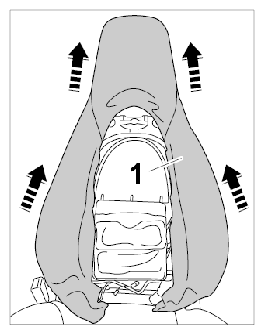

11. Remove cover for backrest -1-  .
    Fig 10: Removing Cover For Backrest

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
