Removing Padding For Front Middle Backrest

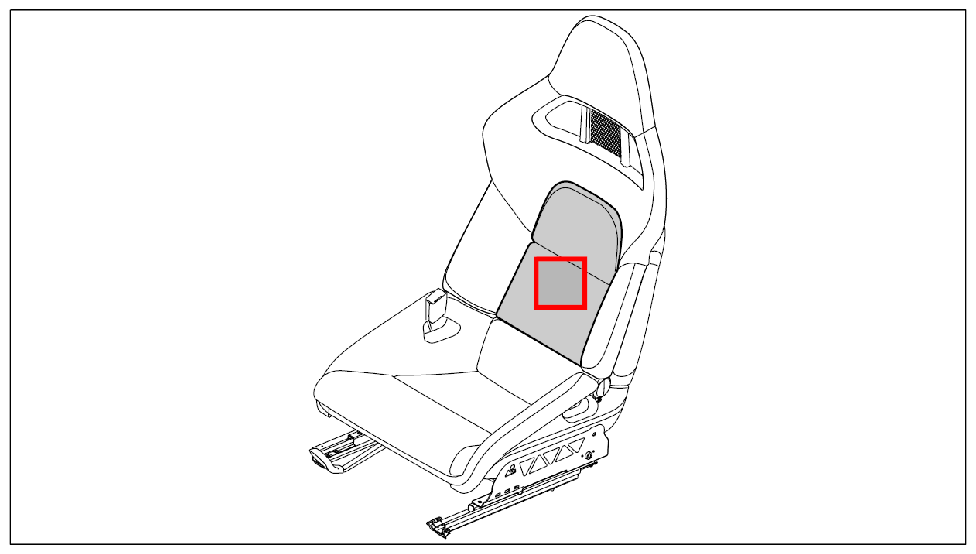

Fig 1: Identifying Padding For Front Middle Backrest Position (Folding Sports Bucket Seat)
G09829996Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release Velcro fasteners -1-  on the back of the padding -2-  all the way around (Fig 2).

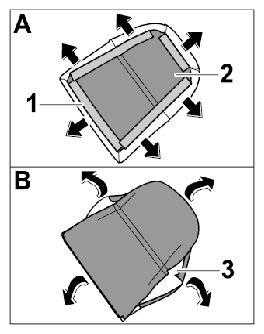

    Fig 2: Releasing Rear Cover
    G09829997Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fold cover -3-  over all the way around (Fig 2).
  3. Carefully detach Velcro strip -1-  on the cover from the Velcro fastener on the front of the padding -2-  (-arrows-  ).
  4. Take off the cover -3-  .

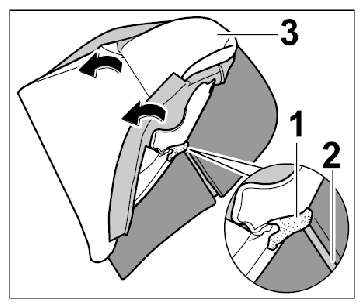

  5. Fig 3: Detaching Cover At Front
    G09829998Courtesy of PORSCHE CARS NORTH AMERICA, INC.
