Installing Padding For Front Middle Backrest

  1. Position piping -2-  for cover for middle backrest and padding -4-  on the plastic frame -3-  . Use the cushion clip pliers Nr.130  and the cushion clips -1-  to connect the cover strips and the plastic frame -3-  .

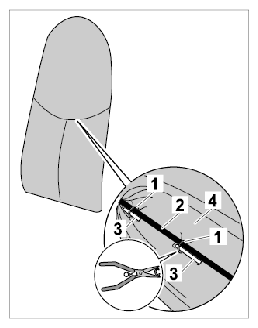

    Fig 1: Installing Cover For Middle Backrest
    G09829988Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Engage cover for middle backrest -1-  in the plastic frame -2-  all the way round.

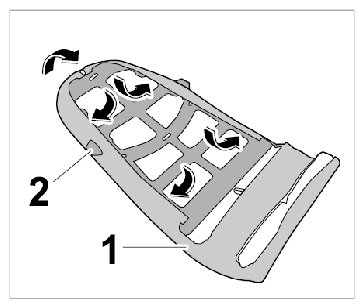

    Fig 2: Engaging Cover For Middle Backrest
    G09829989Courtesy of PORSCHE CARS NORTH AMERICA, INC.
