Installing Padding For Front Backrest: Notes

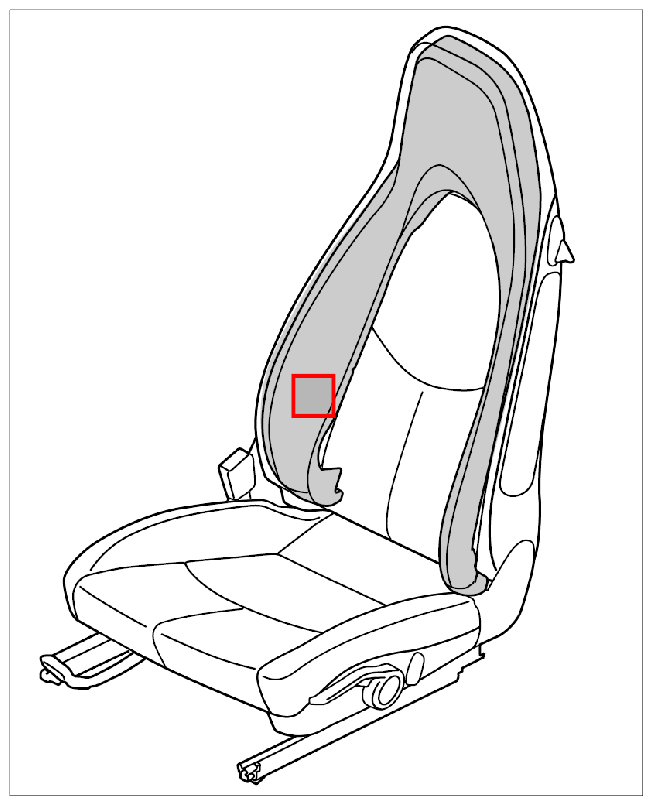

Fig 1: Identifying Padding For Front Backrest Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Sealing surface of backrest frame must be clean and free of grease.

1. Apply adhesive -1-  to the marked area of the padding -2-  .
   Fig 2: Applying Adhesive

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Place padding -1-  on the cushion carrier -2-  and align it with the cushion carrier.
   Fig 3: Installing Padding

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
