Removing Suction Fan For Backrest Surface

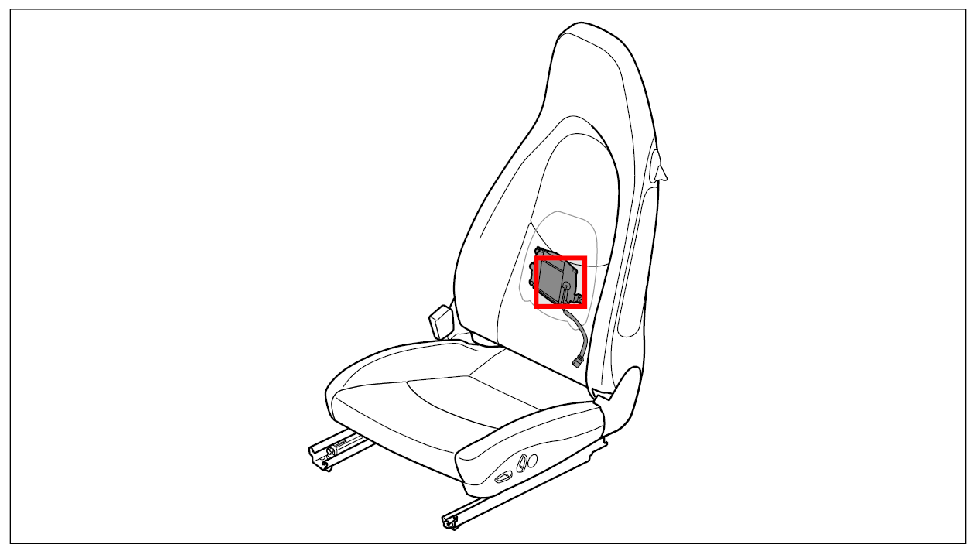

Fig 1: Identifying Suction Fan For Backrest Surface Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Turn suction fan for backrest surface clockwise -arrow A-  until the suction fan for the backrest surface is released. Counter at the air duct -B-  while doing this.
2. Remove suction fan for backrest surface from the air duct -arrow B-  .↓

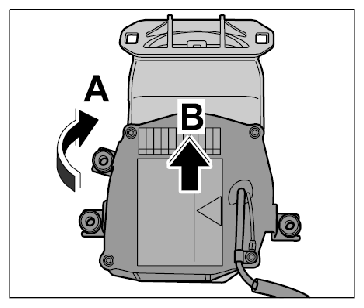

   Fig 2: Removing Suction Fan For Backrest Surface

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
