Installing Suction Fan For Backrest Surface

Check rubber mounting -1- for damage and replace it if necessary.

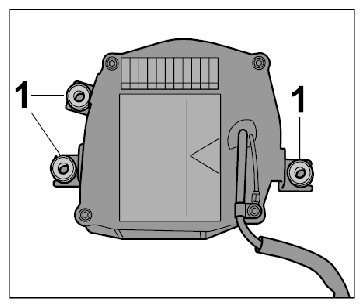

Fig 1: Identifying Rubber Mounting On Suction Fan For Seat Ventilation
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Ensure that the suction fan is installed at the correct position!
Insert suction fan for backrest surface into the air duct -arrow A- , press it in and turn anti-clockwise until the suction fan for the backrest surface is fully locked in the air duct.

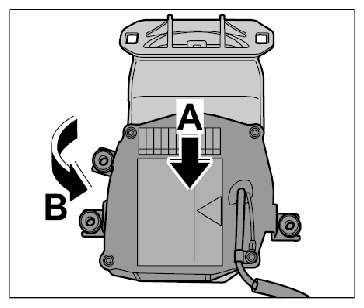

Fig 2: Installing Suction Fan For Backrest Surface
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
