Removing Switch For Seat Adjustment

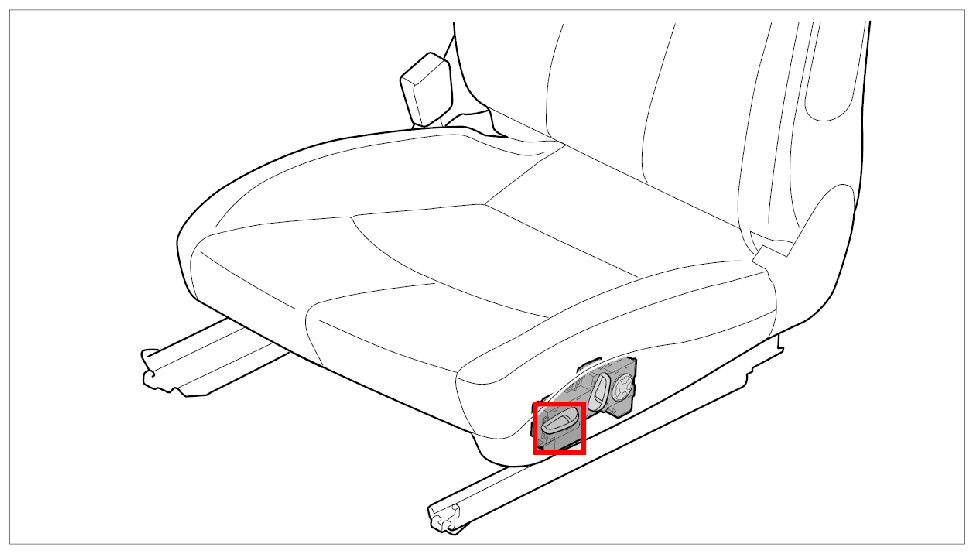

Fig 1: Identifying Installation Position Of Seat Adjustment Switch
G09829764Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Carefully unclip the two control buttons -1-  using a plastic wedge.

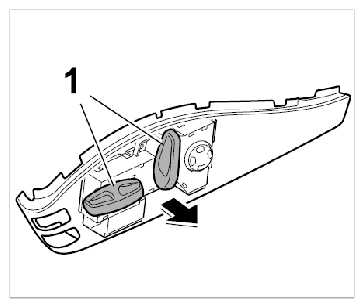

    Fig 2: Removing Control Buttons
    G09829765Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew the three fastening screws -1-  and remove seat adjustment switch -2-  .

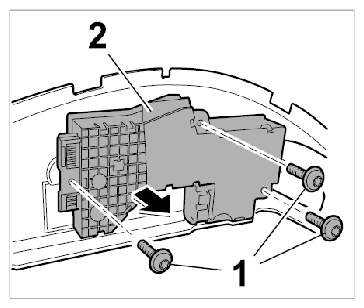

    Fig 3: Removing Switch For Seat Adjustment
    G09829766Courtesy of PORSCHE CARS NORTH AMERICA, INC.
