Removing Locking Mechanism For Rear Backrest
- Press out control button -1-
with a screwdriver.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Unscrew fastening screws -2-
and remove collar -3-
.

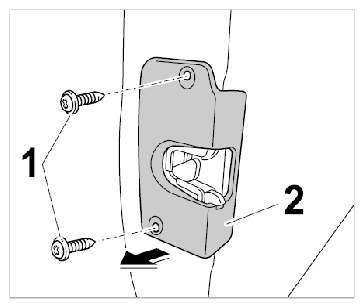

- Unscrew fastening screws -1-
and remove cover for lock -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

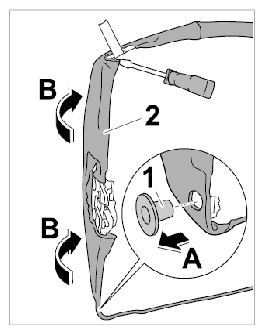

- Remove protection washer -1-
(-arrow A-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Press out cover for backrest -2-
at the sides with a screwdriver -arrows B-
.

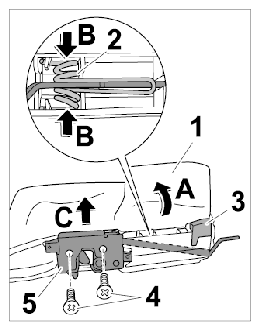

- Fold padding -1-
inwards -arrow A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Press reset spring -2-
together -arrows B-
and remove upwards.
- Unclip cover -3-
.
- Unscrew fastening screws -4-
and remove lock for backrest -5-
by pulling it upwards -arrow C-
.
