Installing Locking Mechanism For Rear Backrest

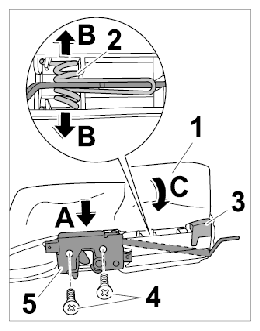

- Position lock for backrest -5-
on the backrest frame -arrow A-
and screw in the fastening screws -4-
. Tightening torque → Tightening torque: 12 Nm (9 ftlb.)+/-2 Nm (+/-1.5)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Clip in cover -3-
.
- Press in reset spring -2-
until it engages -arrows B-
and check lever function.

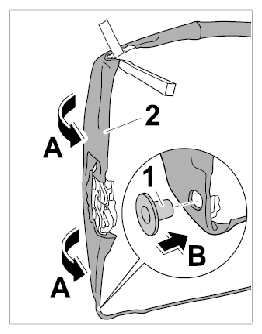

- Press connection for backrest cover -2-
sideways into the backrest frame with a plastic wedge -arrows A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Press in protection washer -1-
(-arrow A-
).

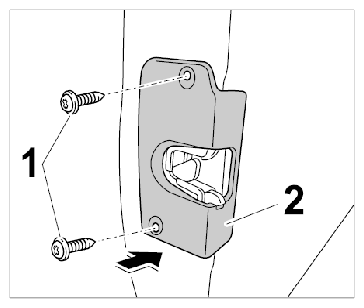

- Position cover for lock -2-
and screw in the fastening screws -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

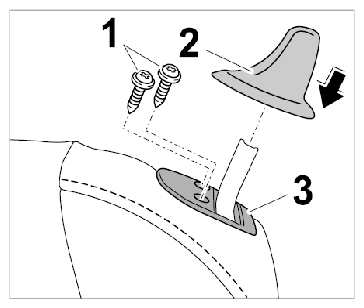

- Place collar -3-
in position and screw in the fastening screws -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Press in control button -2-
.
