Removing Rear Backrest

  1. Press out cover -1-  with a screwdriver.

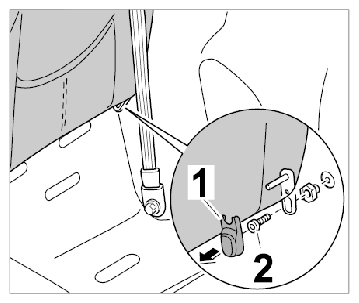

    Fig 1: Loosening Outer Backrest
    G09829750Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screw -2-  .
  3. Press cover -1-  out to the front.

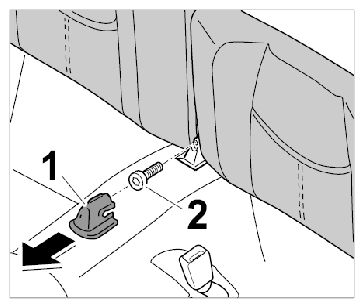

    Fig 2: Loosening Inner Backrest
    G09829751Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew fastening screw -2-  .
  5. Release backrest -1-  , lift it out of the mounting saddle -2-  (-arrow A-  ) and then pull it out of the bearing axle -3-  (-arrow B-  ).

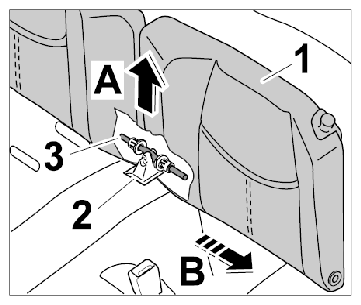

    Fig 3: Removing Backrest
    G09829752Courtesy of PORSCHE CARS NORTH AMERICA, INC.
