Removing Control Valve For Air Cushion

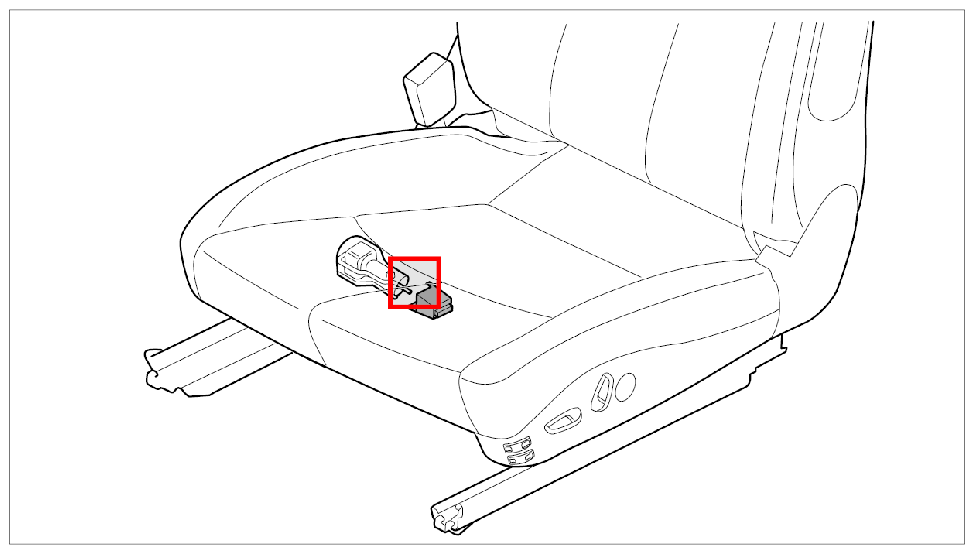

Fig 1: Identifying Installation Position Of Control Valve For Air Cushion

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unscrew the two fastening screws -1-  on the holder -2-  .

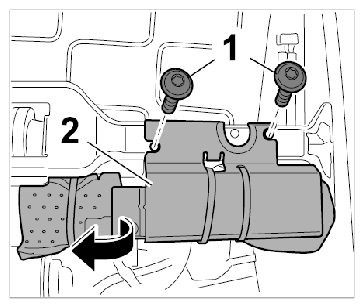

   Fig 2: Loosening Holder With Air Distribution Valve

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Set holder -2-  with connected air cushion control valve aside.
3. Release connector -1-  on air cushion control valve -arrow a-  and pull it off.

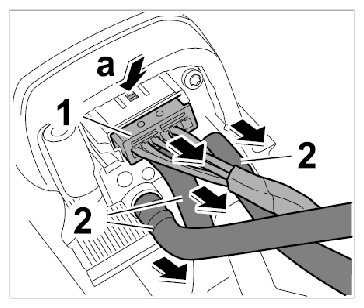

   Fig 3: Pulling Off Connector And Hoses On Air Cushion Control Valve

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Pull the three hoses -2-  off the air cushion control valve.
5. Unscrew fastening screw -1-  and remove air cushion control valve -2-  .

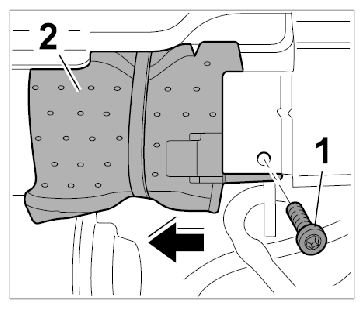

   Fig 4: Removing Control Valve For Air Cushion

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
