Installing Control Valve For Air Cushion

Position air cushion control valve -2- and tighten with the fastening screw -1- .

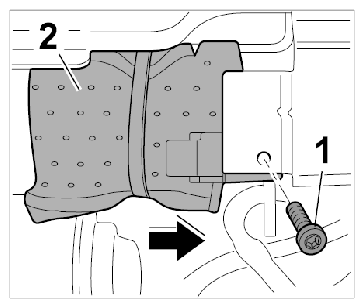

Fig 1: Installing Control Valve For Air Cushion
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Observe the installation position of the hoses!

Push on the blue hose onto the connection marked B and push on the red hose onto the connection marked R .
Push the three hoses -2- onto the air cushion control valve.

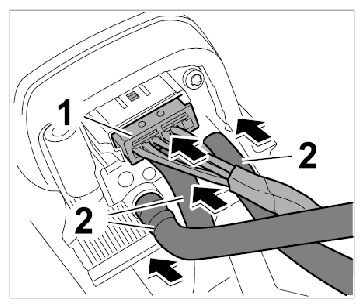

Fig 2: Pushing Connector And Hoses Onto Air Cushion Control Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push connector -1- onto the air cushion control valve until it engages securely.
Position holder -2- with connected air cushion control valve and secure with the two fastening screws -1- .

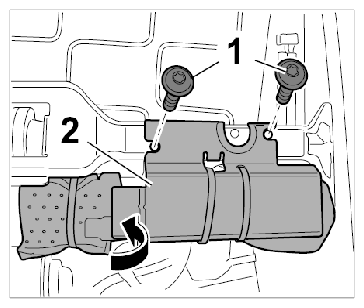

Fig 3: Securing Holder With Air Distribution Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
