Taking Off Foam Part

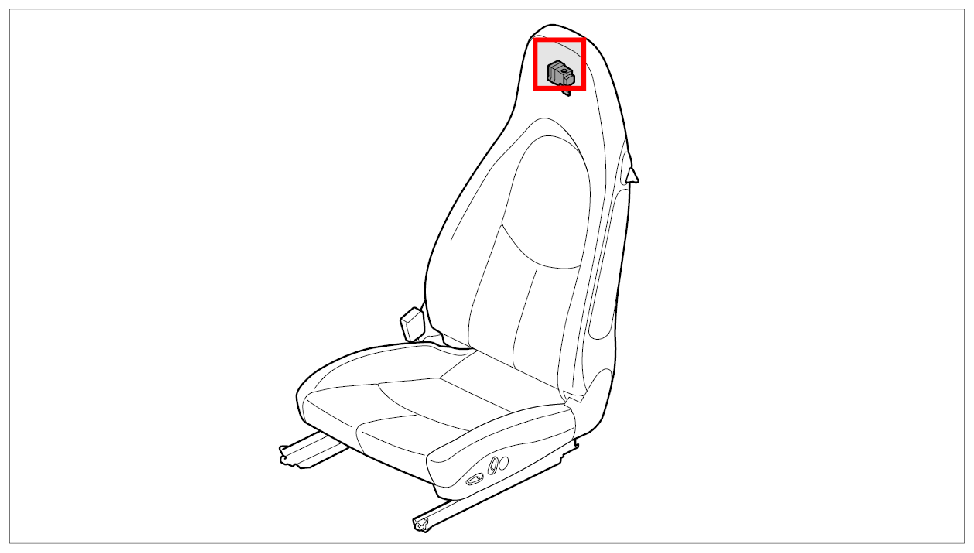

Fig 1: Identifying Installation Position Of Control Valve For Lumbar Support Adjustment
G09829711Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove foam part -1-  at the headrest.

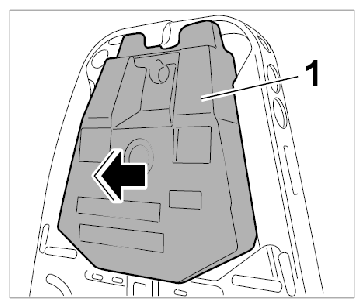

    Fig 2: Taking Off Foam Part
    G09829712Courtesy of PORSCHE CARS NORTH AMERICA, INC.
