Removing Height Adjustment Lever

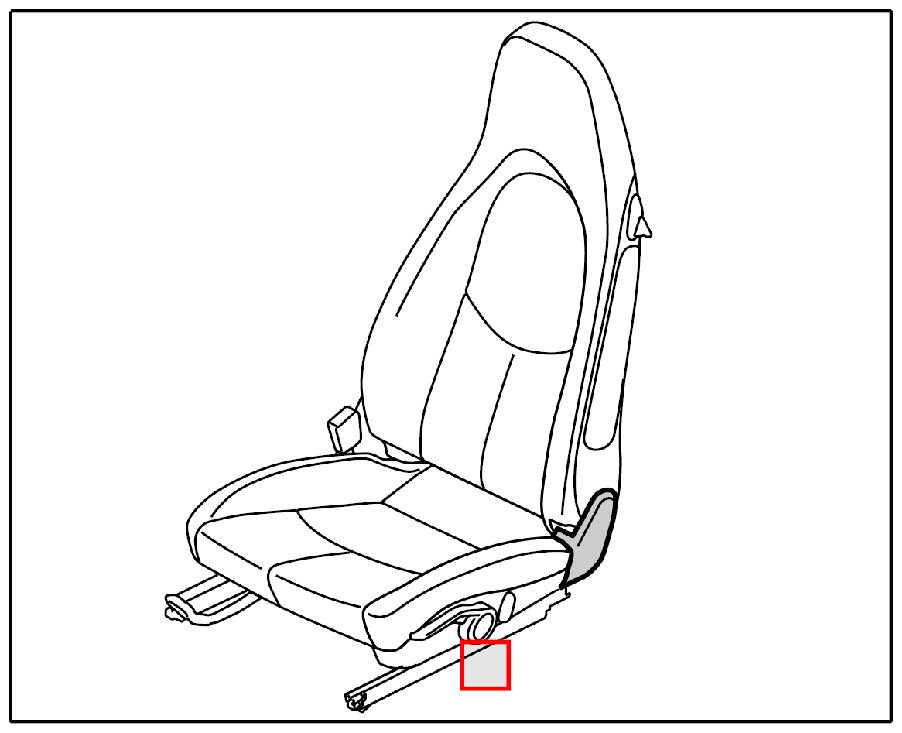

Fig 1: Identifying Installation Position Of Backrest Adjustment
G09829663Courtesy of PORSCHE CARS NORTH AMERICA, INC.

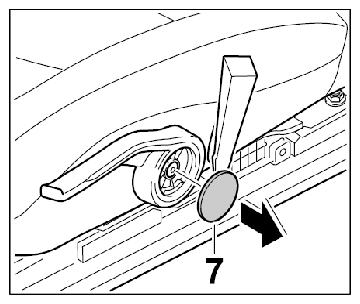

  1. Press out trim panel -7-  using a plastic spatula.
    Fig 2: Pressing Out Trim Panel
    G09829664Courtesy of PORSCHE CARS NORTH AMERICA, INC.

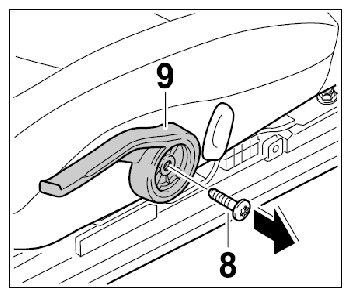

  2. Unscrew fastening screw -8-  from the lever -9-  and remove lever.
    Fig 3: Unscrewing Fastening Screw
    G09829665Courtesy of PORSCHE CARS NORTH AMERICA, INC.
