Removing Backrest Frame Release

  1. Disengage tension spring -1-  .

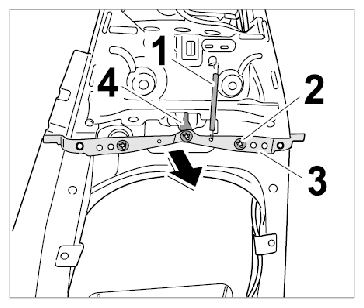

    Fig 1: Removing Backrest Frame Release
    G09829646Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press retaining pins -2-  out with a screwdriver and remove backrest frame release -3-  .
  3. Press out rubber stop -4-  .
