Installing Backrest Frame Release

  1. Press in rubber stop -4-  .

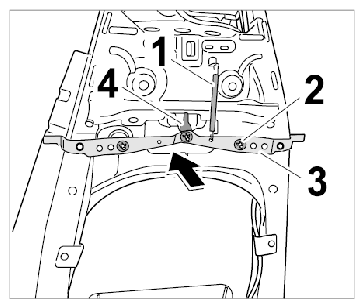

    Fig 1: Installing Backrest Frame Release
    G09829647Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position backrest frame release -3-  and secure with new retaining pins -2-  .
  3. Engage tension spring -1-  .
