Removing Cushion Carrier For Front Backrest: Notes

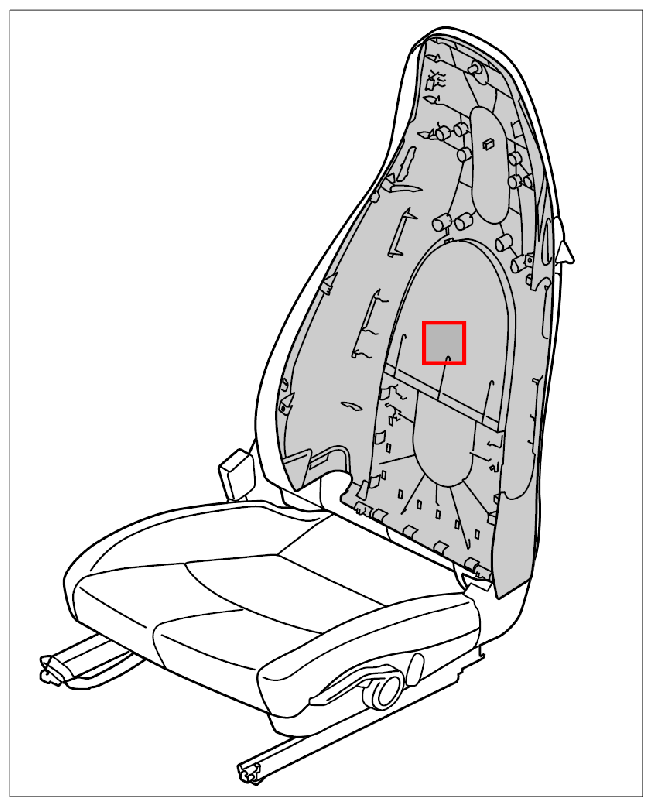

Fig 1: Identifying Installation Position Of Cushion Carrier For Front Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unscrew fastening screws -1, 2-  .

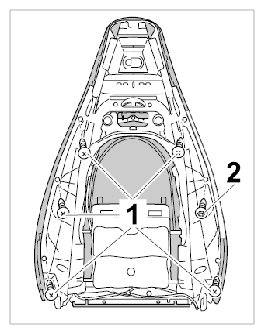

   Fig 2: Identifying Cushion Carrier Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Pull frame for side airbag -2-  out slightly and unclip locking lugs on the cushion carrier -1-  using a screwdriver -arrows-  .

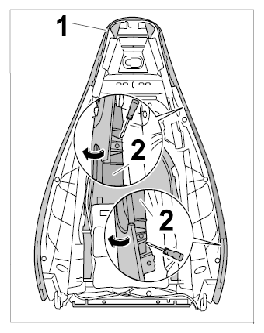

   Fig 3: Loosening Cushion Carrier At Sides

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release locking lugs at the top in direction of arrow -inset A-  .

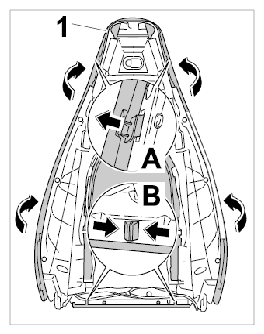

   Fig 4: Removing Cushion Carrier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Press lower locking tabs together and unclip cushion carrier -1-  (-inset B-  ).
5. Press cushion carrier -1-  out slightly close to the backrest release -arrows-  .
