Installing Cushion Carrier For Front Backrest: Notes

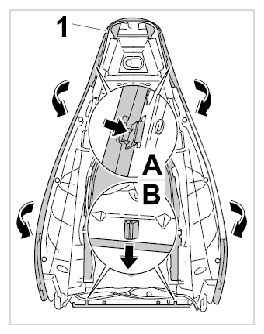

- Press cushion carrier -1-
outward slightly in area of backrest release and position it on the backrest frame -2-
until the locking tabs engage at the top -Inset A-
and bottom -Inset B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

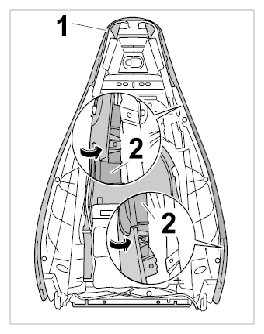

- Press cushion carrier -1-
at the sides into the frame for the side airbag -2-
until the locking tabs engage.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

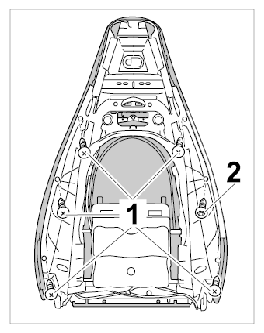

- Tighten fastening screws -1, 2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
