Removing Supports For Backrest Side Parts

  1. Unscrew fastening screws -1-  and remove support for right backrest side part -2-  .

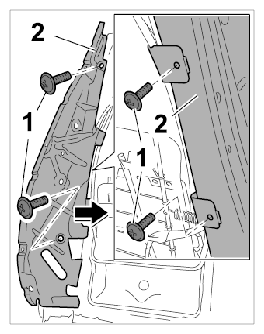

    Fig 1: Removing Support For Right Backrest Side Part
    G09829572Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -1-  and remove support for left backrest side part -2-  .

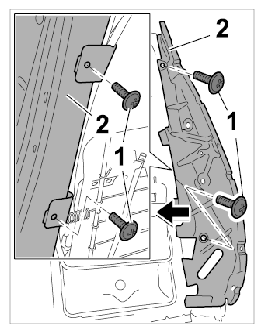

    Fig 2: Removing Support For Left Backrest Side Part
    G09829573Courtesy of PORSCHE CARS NORTH AMERICA, INC.
