Removing Inner Spring On Backrest Frame

  1. Disengage tension springs -1-  at left and right on inner spring -2-  (-arrows A-  ).

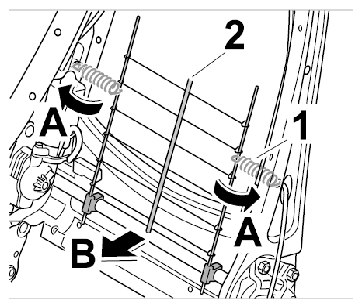

    Fig 1: Removing Inner Spring On Backrest Frame
    G09829574Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip inner spring -2-  on backrest frame at the drive shaft -arrow B-  and remove inner spring.
  3. Disengage tension springs -1-  on the backrest frame.
