Removing Frame For Side Airbag

  1. Unscrew fastening screws -1-  and unclip frame for side airbag -2-  from the backrest frame -3-  .

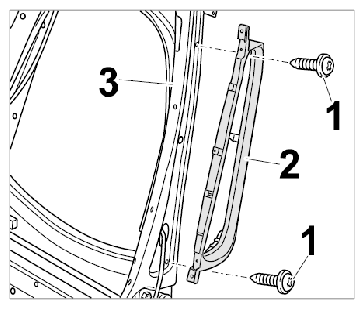

    Fig 1: Identifying Frame For Side Airbag Screws
    G09829577Courtesy of PORSCHE CARS NORTH AMERICA, INC.
