Securing Wire Harnesses On Backrest Frame

Information

Only for vehicles with lumbar support.

Information

Make sure not to trap or damage the wire harness when pulling it through.

1. Pull wire harness for backrest -1-  up into the backrest frame -2-  .

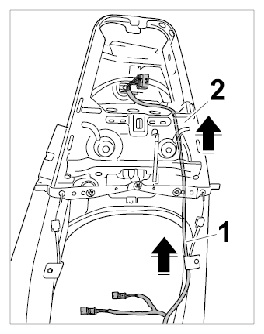

   Fig 1: Pulling Through Wire Harness For Backrest

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press fixing clip -2-  on wire harness for side airbag onto the backrest frame -arrow A-  .

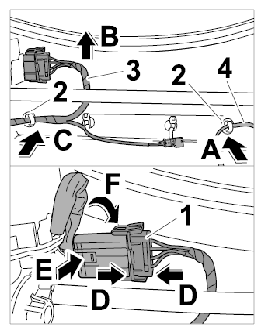

   Fig 2: Securing Wire Harness For Backrest

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Make sure not to trap or damage the wire harness when pulling it through.

3. Pull wire harness for backrest -3-  through -arrow B-  and press in fixing clip -2-  (-arrow C-  ).
4. Push plug connection -1-  together -arrows D-  until it engages securely.
5. Insert plug connection -1-  into the backrest frame -arrow E-  and turn it clockwise by approx. 90° -arrow F-  .
