Installing Supports For Backrest Side Parts

Information

Observe hose routing!

In vehicles with lumbar support, make sure the hoses are routed correctly in the area of the backrest side support.

1. Insert support for left backrest side part -2-  and secure with the fastening screws -1-  .

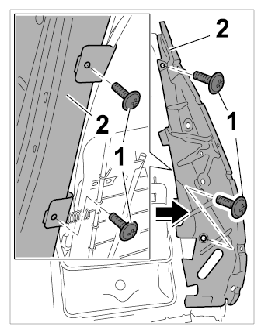

   Fig 1: Installing Support For Left Backrest Side Part

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Route wire harness for side airbag -1-  as shown behind the backrest side part support -2-  .

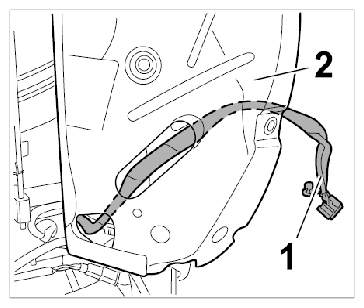

   Fig 2: Identifying Routing Wire Harness For Side Airbag

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Observe hose routing!

   In vehicles with lumbar support, make sure the hoses are routed correctly in the area of the backrest side support.

3. Insert support for right backrest side part -2-  and secure with the fastening screws -1-  .

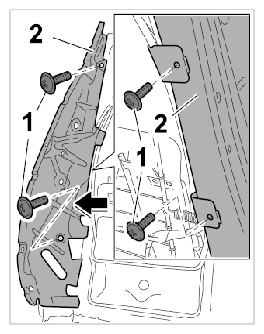

   Fig 3: Installing Support For Right Backrest Side Part

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
