Installing Inner Spring On Backrest Frame

  1. Engage tension springs -1-  in the backrest frame.

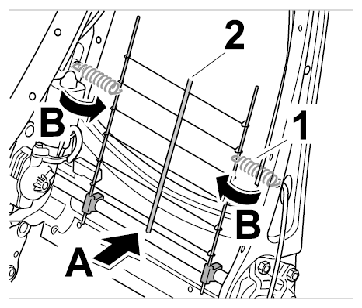

    Fig 1: Engaging Inner Spring On Backrest Frame
    G09829587Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clip in inner spring -2-  on lower part of backrest frame at the drive shaft -arrow A-  .
  3. Engage tension springs -1-  in the inner spring -2-  on the backrest frame -arrow B-  .
