Installing Frame For Side Airbag

  1. Clip frame for side airbag -2-  to backrest frame -3-  and secure with the fastening screws -1-  .

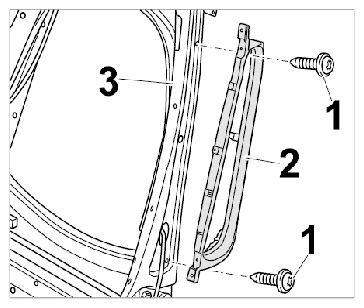

    Fig 1: Identifying Frame For Side Airbag And Nuts
    G09829584Courtesy of PORSCHE CARS NORTH AMERICA, INC.
