Removing Air Cushion For Backrest: Notes

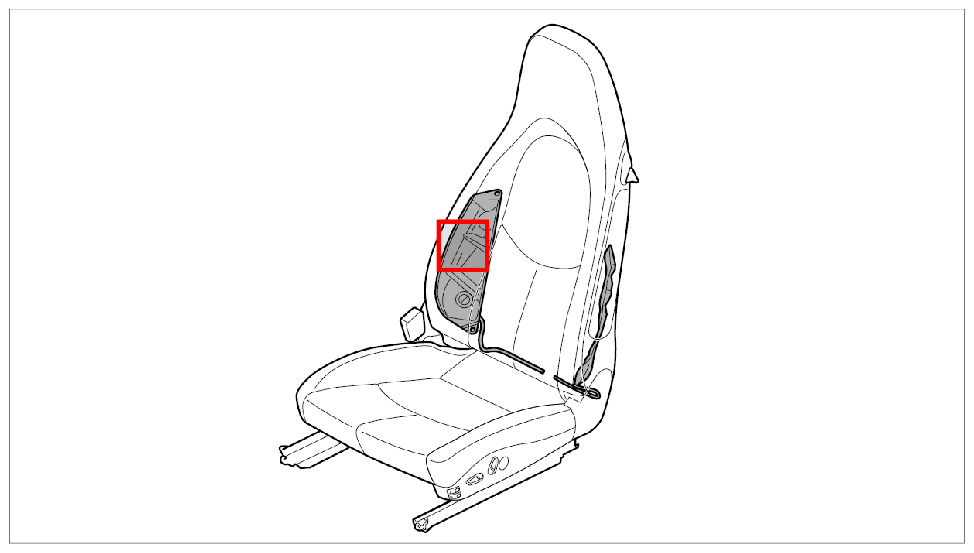

Fig 1: Identifying Installation Position Of Air Cushion For Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove the two tie-wraps -1-  .

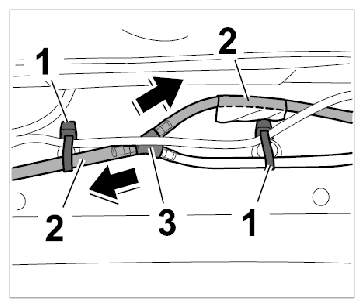

   Fig 2: Pulling Off Hoses On Air Cushion For Backrest

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Pull off the two hoses for the air cushion for backrest -2-  at the branch piece -3-  .
3. Push out the pins -2-  on the two expanding clips -1-  (-arrow A-  ) and remove the expanding clips -1-  .

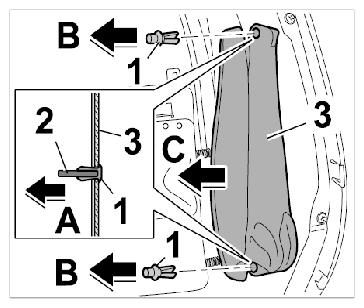

   Fig 3: Removing Air Cushion For Backrest

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove air cushion for backrest -3-  (-arrow C-  ).
5. Pull air cushion for backrest -1-  together with the hose out of the backrest frame.

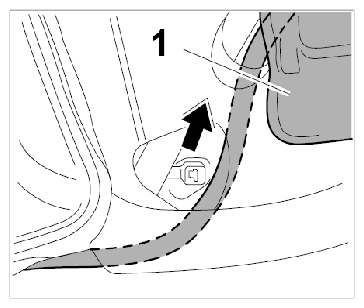

   Fig 4: Pulling Out Hose

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
