Removing Control Part Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

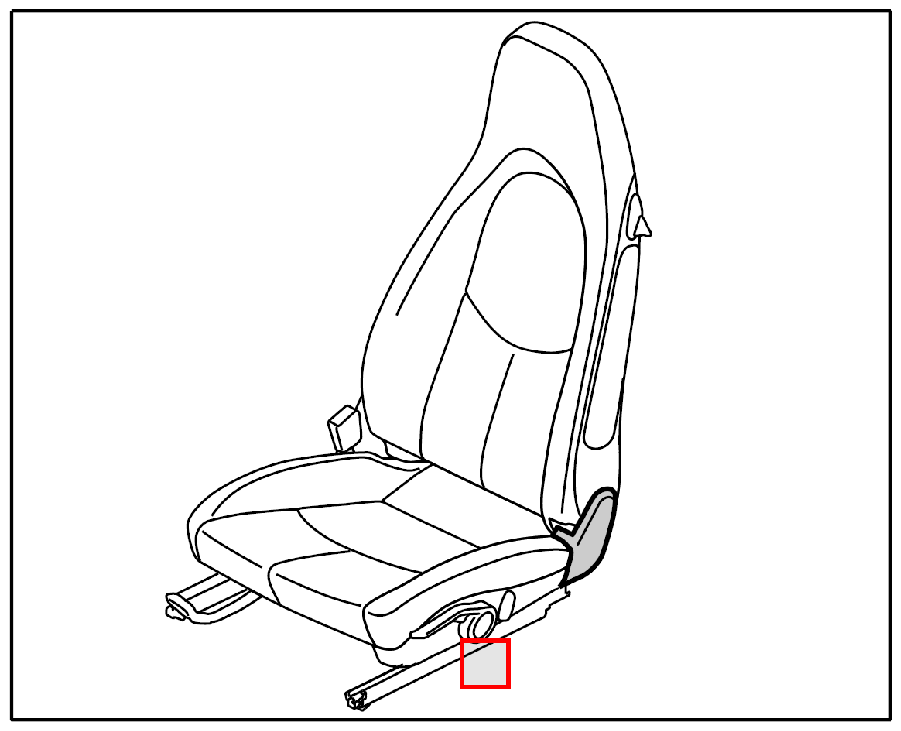

- Unscrew front fastening screws 1
from the control part trim panel 2
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Unscrew rear fastening screws 1
from the control part trim panel 2
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

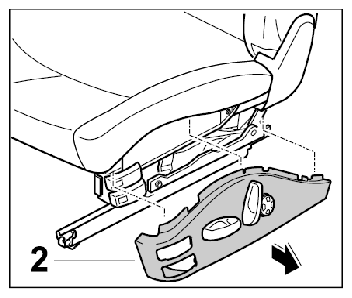

- Pull out control part trim panel 2
from the cushion in direction of arrow.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

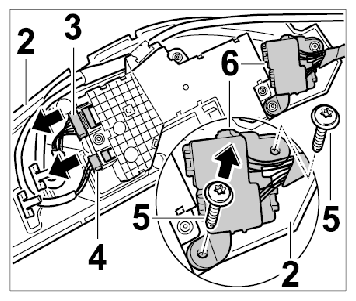

- Disconnect electric plug connection 3 and 4
, unscrew fastening screws 5
from the tip switch 6
and take off the tip switch from the control part trim panel 2
.
