Removing Control Part Trim Panel (With Mechanical Lever)
- Press out trim panel 7
using a plastic spatula.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Unscrew fastening screw 8
from the lever 9
and remove lever.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Removing control part trim panel, work step 1, 2, 3

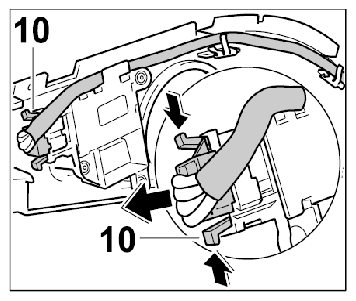

- Disconnect electric plug connection 10
by pressing together the lugs arrow
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
