Installing Control Part Trim Panel (Mechanical)

  1. Connect electrical plug connection 10  .

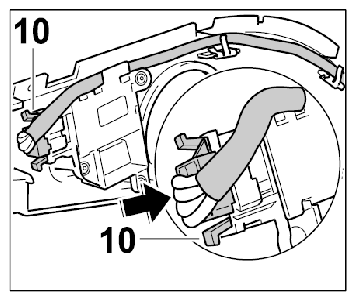

    Fig 1: Connecting Electrical Plug Connection
    G09829555Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Procedure: Installing control part trim panel, work step 2, 3,  4
  3. Position lever 9  on seat, screw down fastening screw 8  . → Tightening torque: 4.5 ftlb.
    Fig 2: Screwing Down Lever
    G09829556Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Press in trim panel.
    Fig 3: Pressing In Trim Panel
    G09829557Courtesy of PORSCHE CARS NORTH AMERICA, INC.
