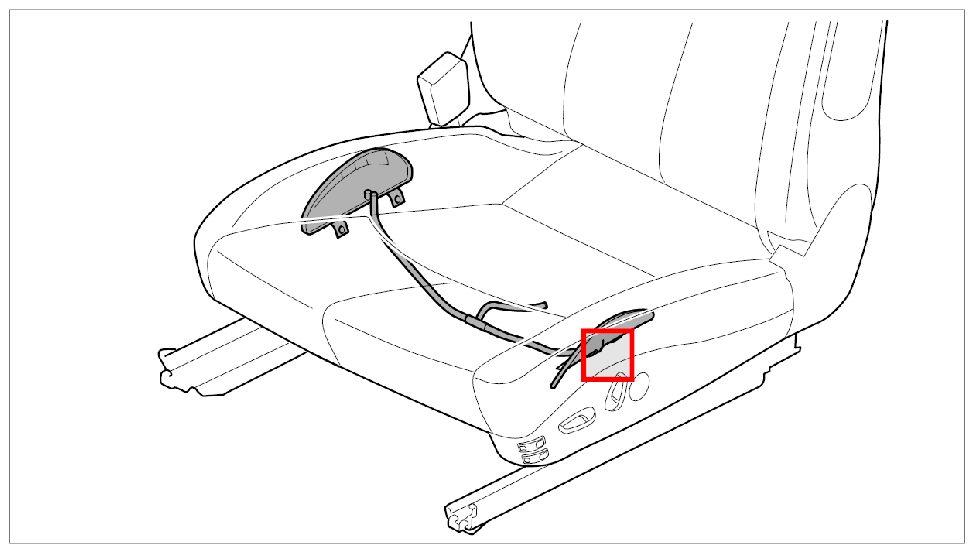

Removing Air Cushion For Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

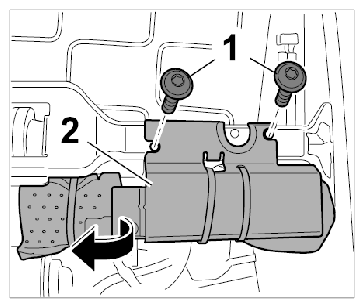

- Unscrew the two fastening screws -1-
on the holder -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Set holder -2-
with air cushion control valve aside.

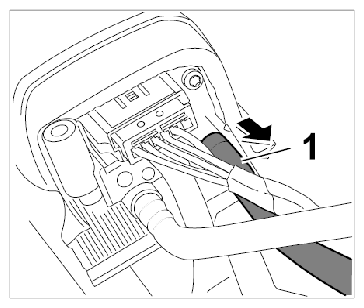

- Pull the white hose -1-
off the air cushion control valve.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

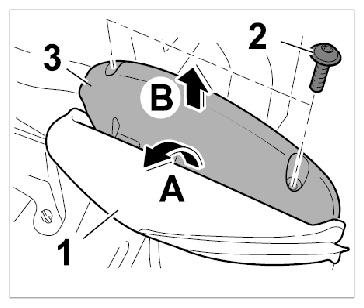

- Fold air cushion for seat -1-
aside -arrow A-
and unscrew the two fastening screws -2-
on the air cushion supporting plate -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

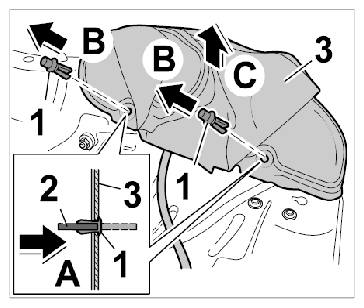

- Remove air cushion supporting plate -3-
(-arrow B-
).
- Push the pins -2-
of the two expanding clips -1-
back -arrow A-
and remove the expanding clips -1-
(-arrows B-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove air cushion for seat -3-
.
