Installing Air Cushion For Seat

Position air cushion for seat -3- on the air cushion supporting plate -arrow A- .

Fig 1: Installing Air Cushion For Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The air cushion for the seat is fastened only with the rear air cushion on the air cushion support plate.

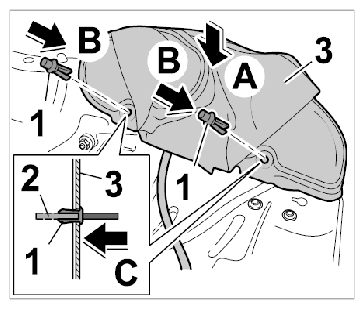

Secure air cushion for seat -3- using the two expanding clips -1- (-arrows B- ). To do this, press the pins -2- into the expanding clips -1- (-arrow C- ).

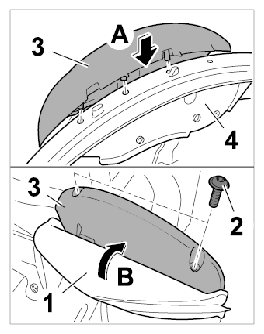

Fit air cushion supporting plate -3- with the guides into the seat frame -4- (-arrow A- ).

Fig 2: Tightening Fastening Screws On Air Cushion Supporting Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure air cushion supporting plate -3- with the two fastening screws -2- .
Fold over air cushion for seat -1- (-arrow B- ) and aligned it with the air cushion supporting plate -3- .

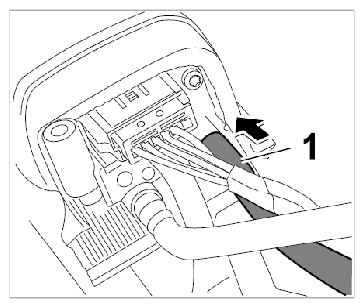

Push the white hose -1- onto the air cushion control valve.

Fig 3: Pushing Hose Onto Air Cushion Control Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

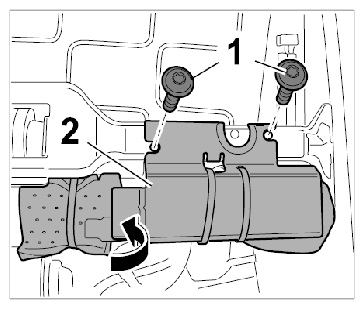

Position holder -2- with air cushion control valve and secure with the two fastening screws -1- .
